Push Back Racking

Quantity:
  • Nanjing Ebil Metal

EBILMETAL Push Back Racking (EBILMETAL-PBR)
Push back racking is to increase the efficiency of the design of custody form,the principle is in between before and after the beam overlap in multi-platform vehicle phase,from the outside will be placed in overlapping stacks of goods into the trolley,after the storage of goods will be pushed inside the original goods.Cross trolley tracks in the tilt,when the goods have been taken outside,the inside of the trolley will antomatically slide into the outside

.The forklift needs not to enter the pallet aisle,High storage density and fast to handle
.The max 5 pallet positions per aisle,and storage style is "First In - Last Out"
.Different colors of trolleys for visual management

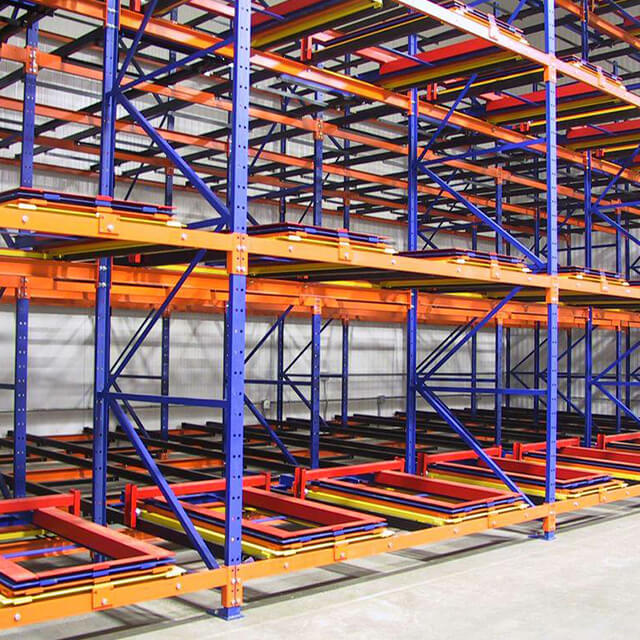

Push-Back-Racking1  Push-Back-Racking2  Push-Back-Racking3
Packaging & Delivery
Packaging Detail: We can design our packing dependent on you needs. We recognise the cost of labour to unload containers in some countries is high.This is why we can often pack some items so they can be unloaded by fork truck.Either way all our product is protected during transportation and once the container is full we use airbags to limit and movement of the goods during transit
Delivery Detail: 15days for fast lead time

Advantages for  Push Back Racking:
A medium cost storage solution providing high-density storage
Quick easy access to all lines
Maximum use of floor space
Pallets are stored 2,3,4 deep
Suitable for bulk storage/ chill store applications

Specifications of Beam
Type
Item Height(mm) Width(mm) Thickness(mm)
P style Pipe(Step Beam)
1 50 30 1.5
2 60 40 1.5
3 80 50 1.5
4 110 70 1.5
5 140 70 1.5
6 160 70 1.5
Box Beam
7 80 50 1.5
8 100 50 1.5
9 110 50 1.5
10 120 50 1.5
11 140 50 1.8
12 160 50  2.0


Specifications of Upright
Item Width(mm) Depth(mm) Thickness(mm) Loading Capacity(kg)
1 85 67 1.6 7000
2 85 67 1.8 8500
3 85 67 2.0 10000
4 85 67 2.3 12500
5 100 67 1.8 10500
6 100 67 2.0 12000
7 100 67 2.3 13800
8 100 95 2.0 12000
9 100 95 2.3 14500
10 100 95 2.5 16000
11 100 95 2.75 18000
12 100 95 3.0 20000
13 120 95 2.5 17000
14 120 95 2.75 19000
15 120 95 3.0 21000
